Pharaoh Short Kit

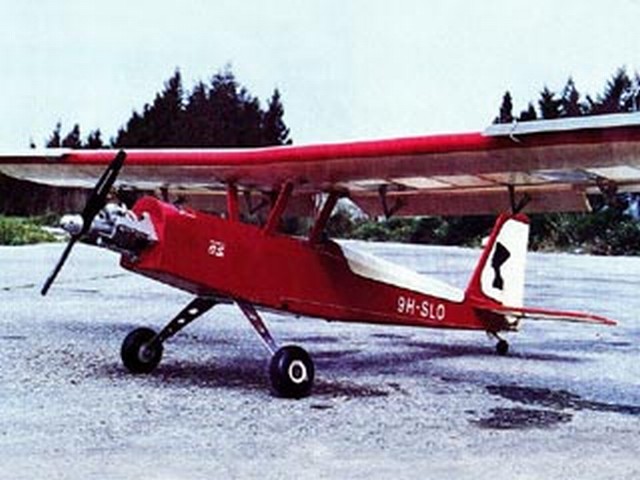

The Pharaoh from RCM is a lightweight plane with flaps.

The plan has a few drafting errors.  Bulkheads F-4 through F-7 are shown with irregular spacing in the drawing, but my parts are made with the assumption that you will place F-7 at the location shown on the plan and place 4, 5 and 6 with even spacing.

F-3 looks simple on the plan, but I have altered the outline to allow the lower turtle deck stringer to be flush with the front top deck sheeting below the cockpit.  It’s probably a good idea to install the front and rear stringers first, then notch the front sheeting to accommodate the lower turtle deck stringer.

There are some other oddities in the wing attachment anchors.  I assume that if you’re building this plane you’ll need to be a competent builder, but if you have any questions send me an email.
